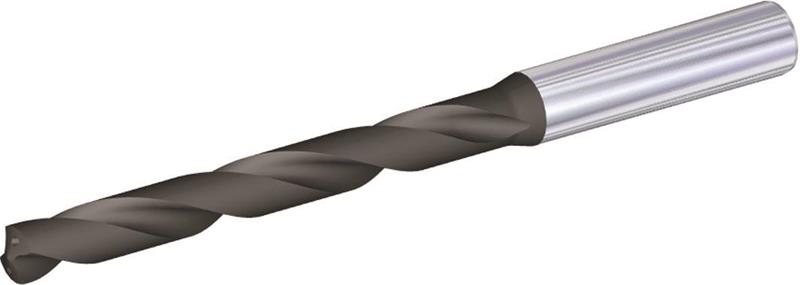

14.288mm (.5625) x 171mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A14288 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
4.7638 Inch |
| Overall Length |
6.7323 Inch |
| Point Length |
0.0971 Inch |
| Shank Diameter |
0.6299 Inch |
| Flute Style |
Helix |
| Coating/Finish |
TiAlN |
| Fractional Diameter |
9/16" |
| Direction of Cut |
Right Hand |
| Point Angle |
140 Degree |
| Grade |
WU25PD |
| Metric Diameter |
14.288 mm |
| Brand |
WIDIA |
| Number of Flutes |
2 |
| Coolant Through (Yes/No) |
Yes |
| Material |
Solid Carbide |
| Shank Length |
1.8898 Inch |
| Shank Style |
Straight |
| Decimal Diameter |
0.5625" |
| Product Name |
Long Drill |
