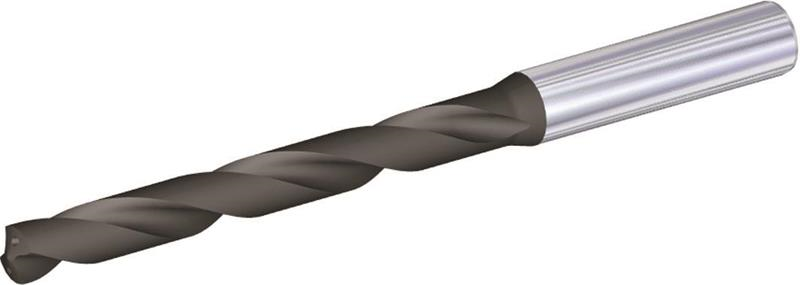

17.00mm (.6693) x 185mm OAL TiAlN Coolant Thru 8xD HP Carbide Drill Bit
- Item Code: VDS403A17000 WU25PD
- Brand: WIDIA
- Unit Size: 1
| Flute Length |
135.00 MM |
| Overall Length |
185.00 MM |
| Point Length |
2.946 MM |
| Shank Diameter |
18.00 MM |
| Material |
Solid Carbide |
| Metric Diameter |
17.00 mm |
| Direction of Cut |
Right Hand |
| Point Angle |
140 Degree |
| Brand |
WIDIA |
| Decimal Diameter |
0.6693" |
| Flute Style |
Helix |
| Number of Flutes |
2 |
| Shank Length |
48.00 MM |
| Coating/Finish |
TiAlN |
| Grade |
WU25PD |
| Shank Style |
Straight |
| Coolant Through (Yes/No) |
Yes |
| Product Name |
Long Drill |
