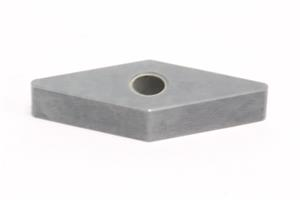

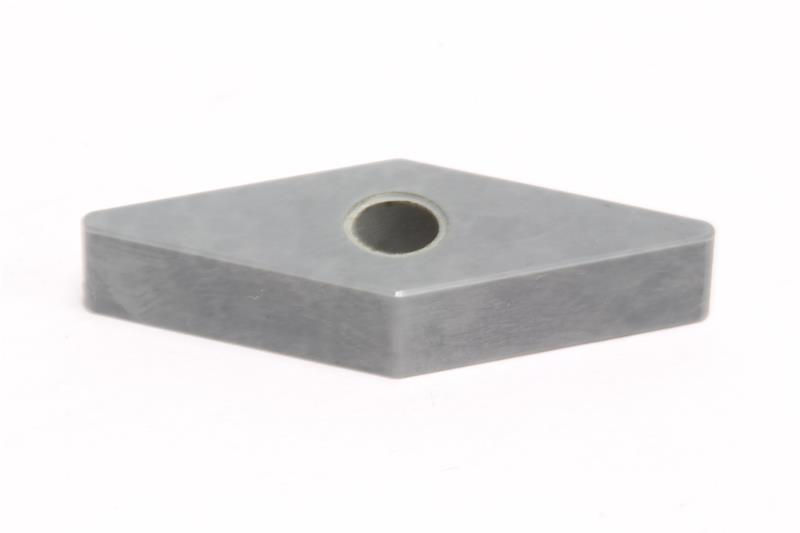

VNGA32.52 NB90S Grade, Ceramic Turning Insert

  • Item Code: VNGA331 NB90S
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Insert Style VNGA
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Coating/Finish Ceramic
Included Angle 35
Relief Angle 0 Degree
Number of Edges 4
Insert Size 331
Grade NB90S
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Insert Type Negative
Material Ceramic
Shape Diamond
Brand Sumitomo
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
