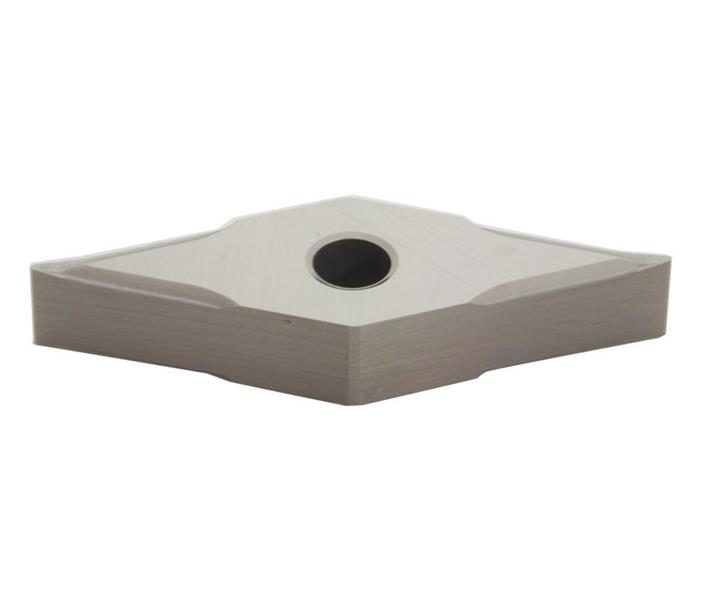

VNGG330.5 ESUJ H1 Diamond Turning Insert

  • Item Code: VNGG330.5ESUJ H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Shape Diamond
Chipbreaker Type ESU
Grade H1
Insert Size 330
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish None
Included Angle 35
Insert Style VNGG
Material Solid Carbide
Corner Radius 0.0078 Inch
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Insert Type Negative
Relief Angle 0 Degree
