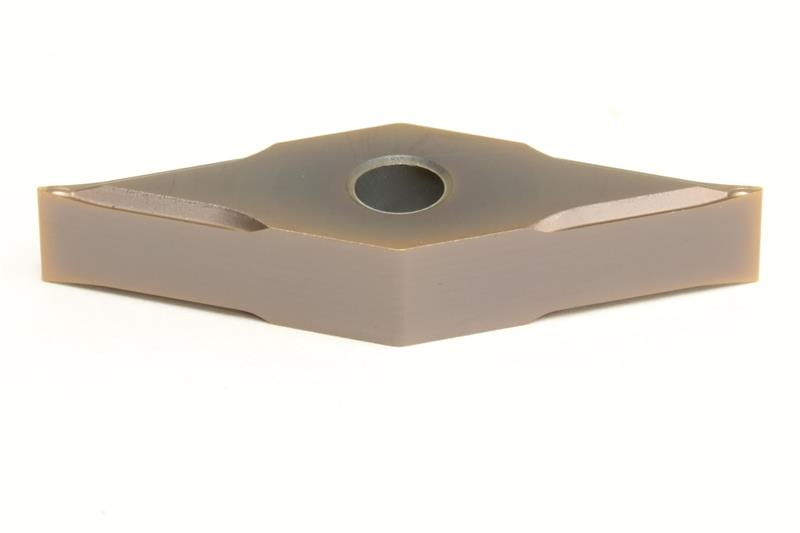

VNGG330 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VNGG330ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0039 Inch
Number of Edges 4
Chipbreaker Type ESU
Included Angle 35
Insert Size 330
Material Solid Carbide
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC520U
Insert Style VNGG
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Thickness 0.1875 Inch
Insert Type Negative
Shape Diamond
Brand Sumitomo
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
