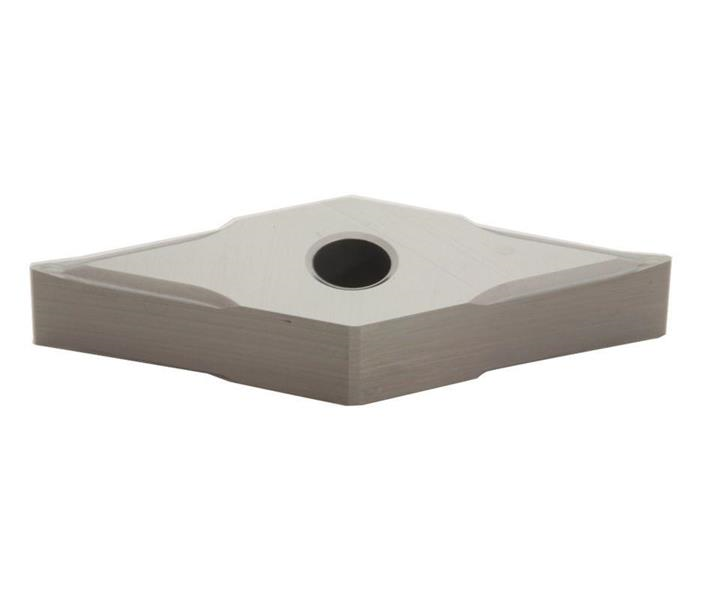

VNGG330 ESUJ H1 Diamond Turning Insert

  • Item Code: VNGG330ESUJ H1
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Corner Radius 0.0039 Inch
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ESU
Grade H1
Insert Size 330
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 13 Degree
Mounting Hole Diameter 0.1500 Inch
Insert Type Negative
Relief Angle 0 Degree
Brand Sumitomo
Coating/Finish None
Insert Style VNGG
Shape Diamond
Included Angle 35
Material Solid Carbide
