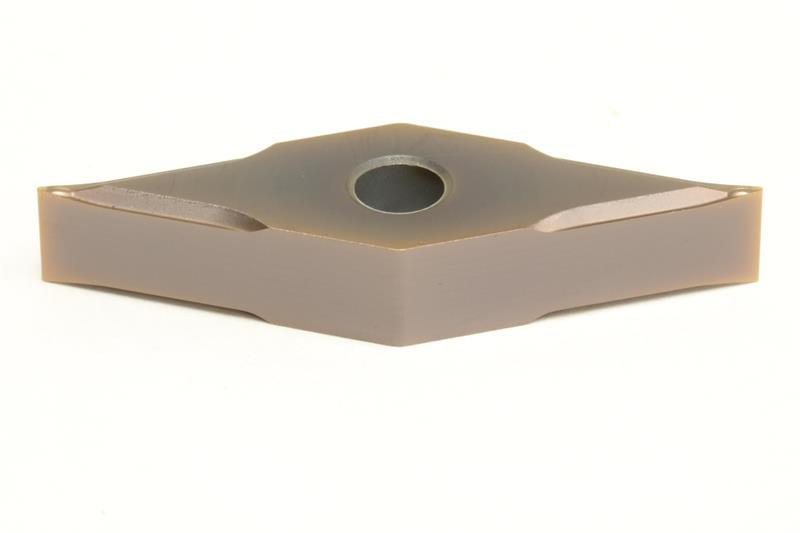

VNGG331 ESU AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VNGG331ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ESU
Number of Edges 4
Mounting Hole Diameter 0.1500 Inch
Brand Sumitomo
Corner Radius 0.0156 Inch
Included Angle 35
Insert Size 331
Insert Style VNGG
Shape Diamond
Grade AC520U
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Insert Type Negative
Relief Angle 0 Degree
