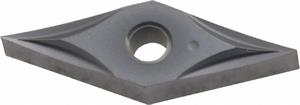

INSERT VNGP330 KC5010 KENNAMETAL
- Item Code: VNGP3302-KC5010
- Brand: Kennametal
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Corner Radius | 0.0039 |
|---|---|
| Insert Size | 330 |
| Insert Style | VNGP |
| Length | 16.61mm |
| Thickness | 3/16" |
| Coating Process | PVD |
| Coating/Finish | TiAlN |
| Manufacturer's Grade | KC5010 |
| Material Grade | C3/C4 |
| Relief Angle | 0° |
| Included Angle | 35 |
| Series | Kenloc |
| Shape | Diamond |
| Type | Insert |
| Material | Solid Carbide |
| Hole Diameter | 3.81mm |
| Maximum Depth of Cut | 1.25mm |
| Brand | Kennametal |
| Insert Holding Method | Screw or Clamp |
| Inscribed Circle | 3/8" |
| Rake | Negative |
