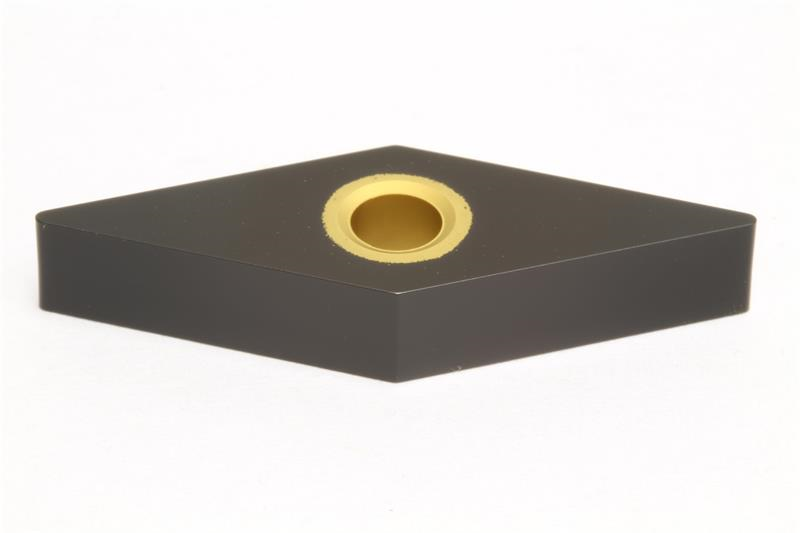

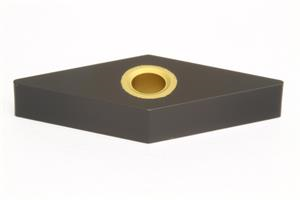

VNMA332 AC420K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: VNMA332-AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Included Angle 35
Insert Type Negative
Material Solid Carbide
Product Name Turning Insert
Thickness 0.1875 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Brand Sumitomo
Chipbreaker Type No
Grade AC420K
Inscribed Circle 0.3750 Inch
Insert Style VNMA
Corner Radius 0.0313 Inch
Insert Size 332
Shape Diamond
