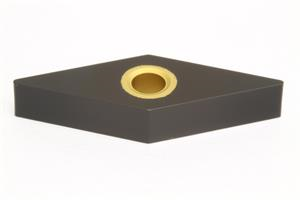

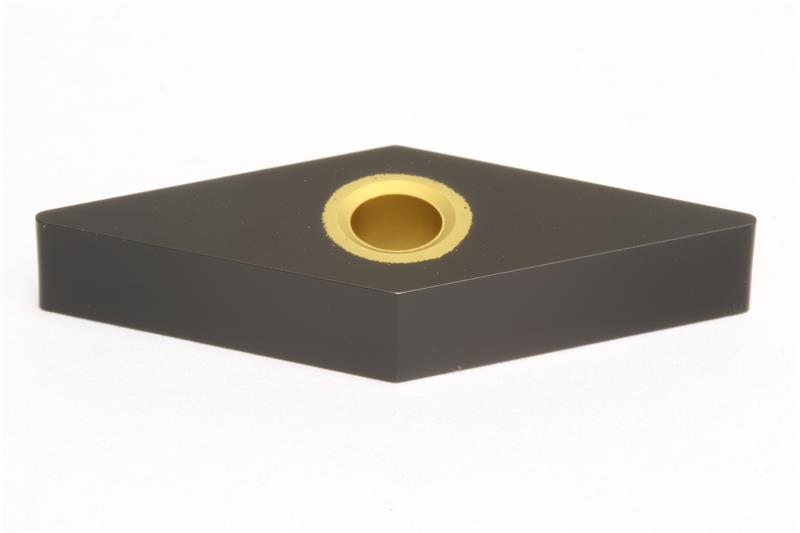

VNMA332 AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: VNMA332 AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style VNMA
Grade AC700G
Relief Angle 0 Degree
Inscribed Circle 0.3750 Inch
Brand Sumitomo
Included Angle 35
Corner Radius 0.0313 Inch
Insert Size 332
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish Coated
Insert Type Negative
Material Solid Carbide
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type No
Shape Diamond
