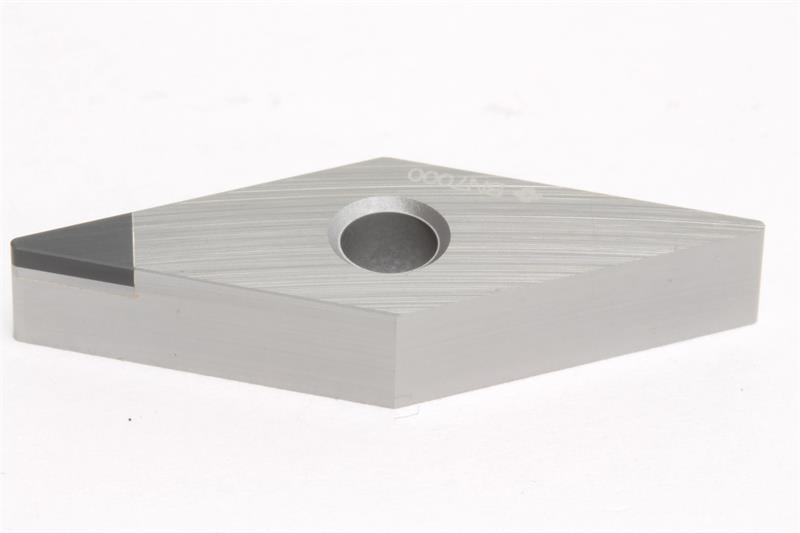

VNMA332 BN250 Grade, PCBN Turning Insert

  • Item Code: VNMA332 BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Chipbreaker Type Full Tip
Grade BN250
Insert Style VNMA
Max Depth of Cut 0.0200 Inch
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Material PCBN
Coating/Finish None
Corner Radius 0.0313 Inch
Included Angle 35
Insert Size 332
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Thickness 0.1875 Inch
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Relief Angle 0 Degree
