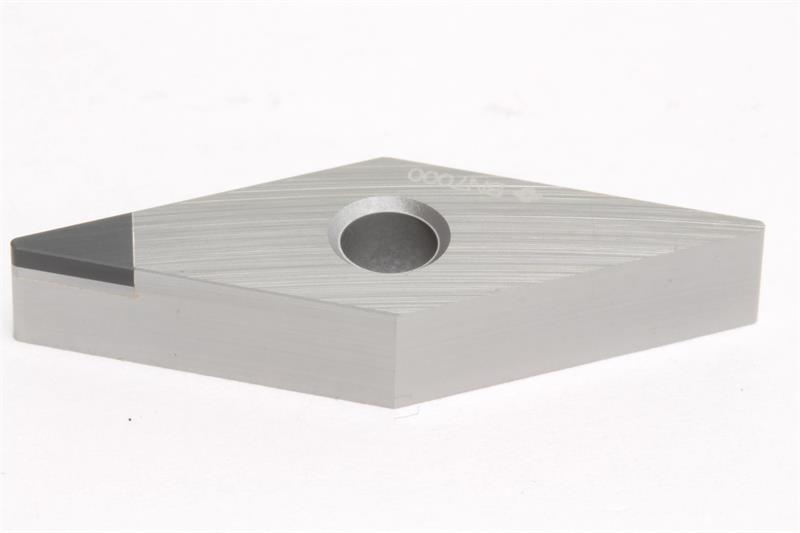

VNMA332 BNX20 Grade, PCBN Turning Insert

  • Item Code: VNMA332-BNX20
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Grade BNX20
Chipbreaker Type Full Tip
Insert Style VNMA
Coating/Finish None
Insert Size 332
Max Depth of Cut 0.0200 Inch
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Material PCBN
Corner Radius 0.0313 Inch
Included Angle 35
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Product Name Turning Insert
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Thickness 0.1875 Inch
Insert Type Negative
Relief Angle 0 Degree
