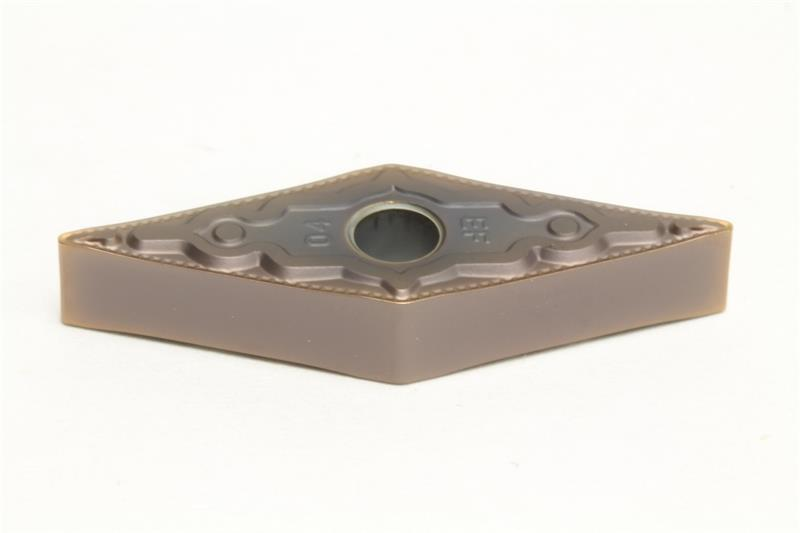

VNMG331 EEF AC510U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VNMG331EEF AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Insert Style VNMG
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Grade AC510U
Relief Angle 0 Degree
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 35
Insert Type Negative
Number of Edges 4
Rake Angle 0 Degree
Chipbreaker Type EEF
Material Solid Carbide
