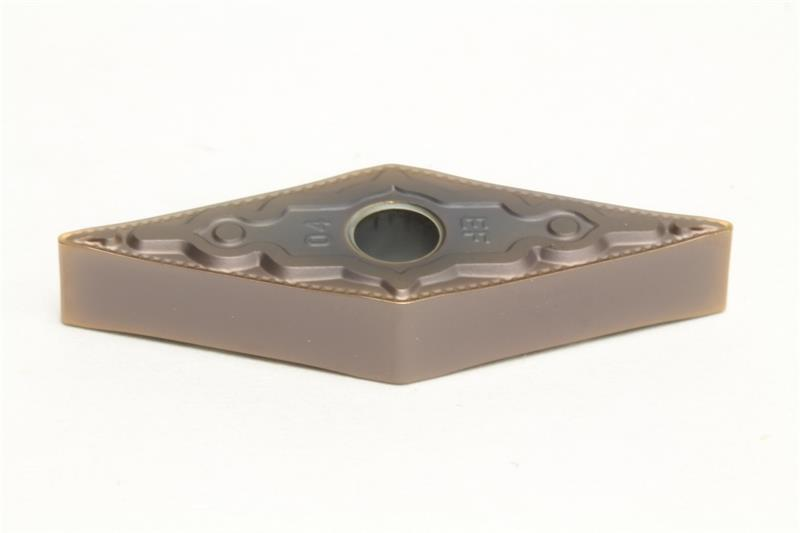

VNMG331 EEF AC520U Grade, TiAIN/AICrN Coated, Carbide Turning Insert

  • Item Code: VNMG331EEF AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EEF
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 35
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Product Name Turning Insert
Rake Angle 0 Degree
Grade AC520U
Material Solid Carbide
Thickness 0.1875 Inch
Insert Type Negative
Relief Angle 0 Degree
