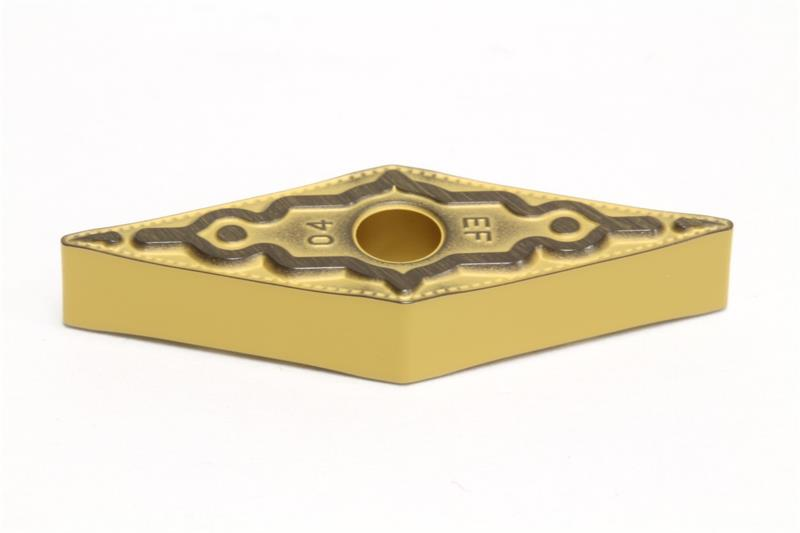

VNMG331 EEF AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EEF AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Insert Size 331
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Chipbreaker Type EEF
Included Angle 35
Material Solid Carbide
Corner Radius 0.0156 Inch
Number of Edges 4
Relief Angle 0 Degree
Coating/Finish CVD
Grade AC630M
