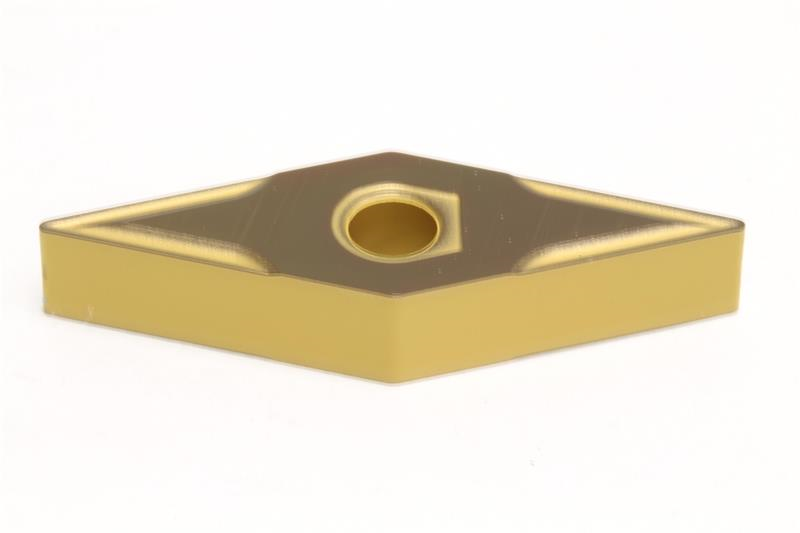

VNMG331 EEX AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EEX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish CVD
Number of Edges 4
Chipbreaker Type EEX
Insert Type Negative
Material Solid Carbide
Corner Radius 0.0313 Inch
Grade AC630M
Product Name Turning Insert
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Size 331
Insert Style VNMG
Thickness 0.1875 Inch
Included Angle 35
Inscribed Circle 0.3750 Inch
Shape Diamond
Mounting Hole Diameter 0.1500 Inch
Rake Angle 16 Degree
