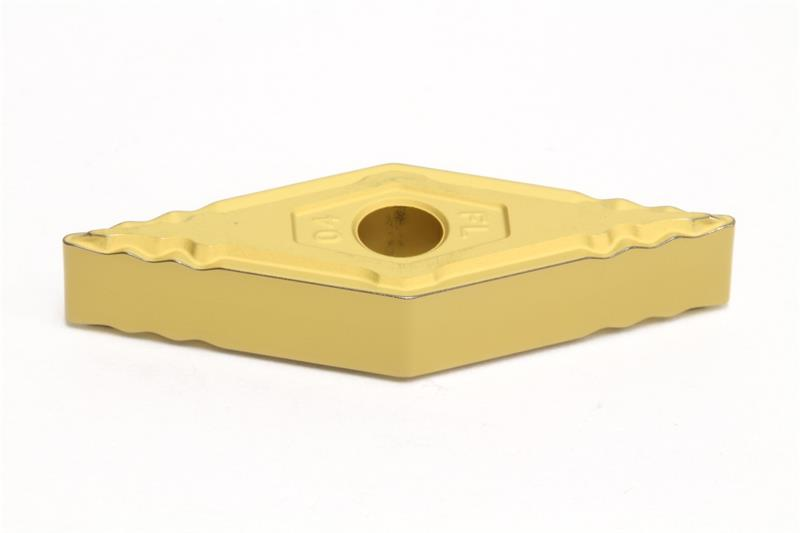

VNMG331 EFL AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EFL AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 35
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type EFL
Shape Diamond
Insert Size 331
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Style VNMG
Rake Angle 10 Degree
Insert Type Negative
Relief Angle 0 Degree
