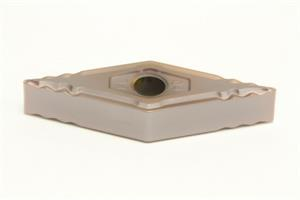

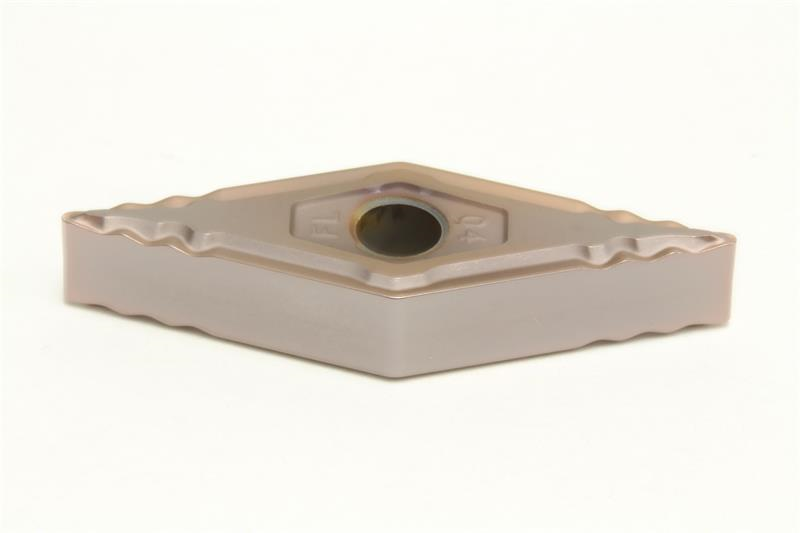

VNMG331 EFL T2000Z Grade, TiN/AIN Coated, Cermet Turning Insert

  • Item Code: VNMG331EFL T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Chipbreaker Type EFL
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Number of Edges 4
Grade T2000Z
Shape Diamond
Coating/Finish Cermet
Corner Radius 0.0156 Inch
Rake Angle 10 Degree
Relief Angle 0 Degree
Brand Sumitomo
Insert Size 331
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Included Angle 35
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
