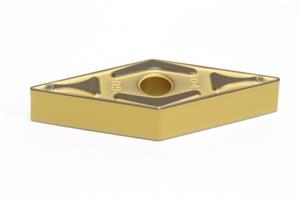

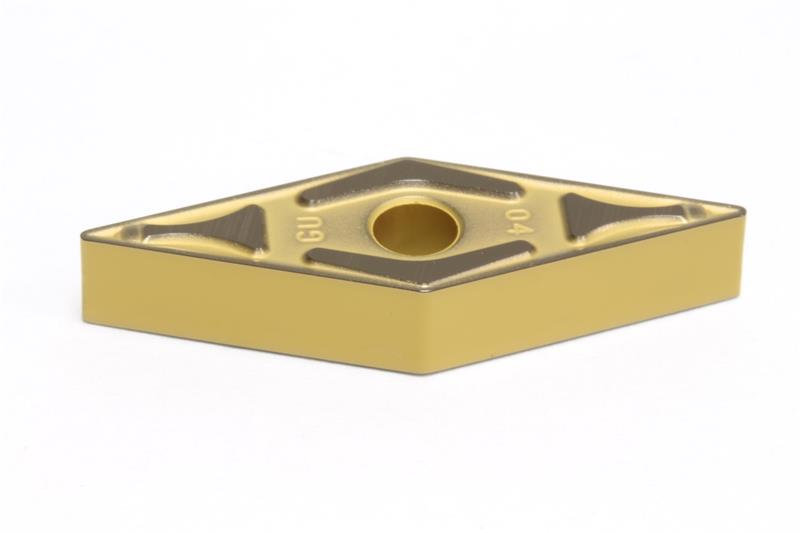

VNMG331 EGU AC610M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EGU AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Product Name Turning Insert
Rake Angle 7 Degree
Chipbreaker Type EGU
Material Solid Carbide
Insert Size 331
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Grade AC610M
Number of Edges 4
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 35
