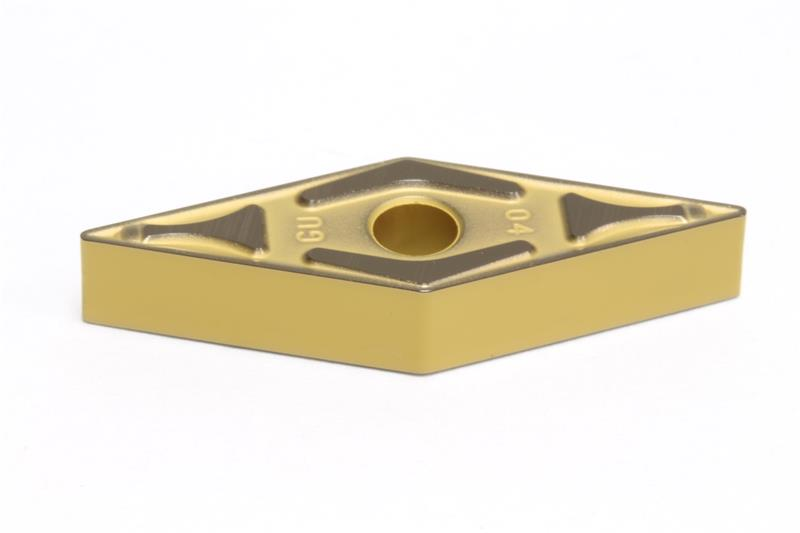

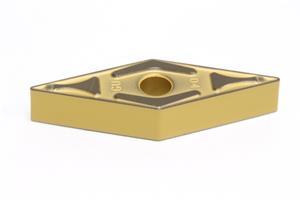

VNMG331 EGU AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331EGU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC820P
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Brand Sumitomo
Insert Size 331
Insert Style VNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Chipbreaker Type EGU
Inscribed Circle 0.3750 Inch
Material Solid Carbide
Included Angle 35
Rake Angle 7 Degree
Relief Angle 0 Degree
