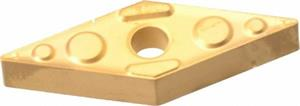

VNMG331 ENG AC830P Grade, Carbide Turning Insert

  • Item Code: VNMG331ENG AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Rake Angle 4 Degree
Corner Radius 0.0156 Inch
Insert Size 331
Included Angle 35
Shape Diamond
Insert Type Negative
Relief Angle 0 Degree
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Product Name Turning Insert
Coating/Finish CVD
Grade AC830P
Thickness 0.1875 Inch
Chipbreaker Type ENG
Material Solid Carbide
