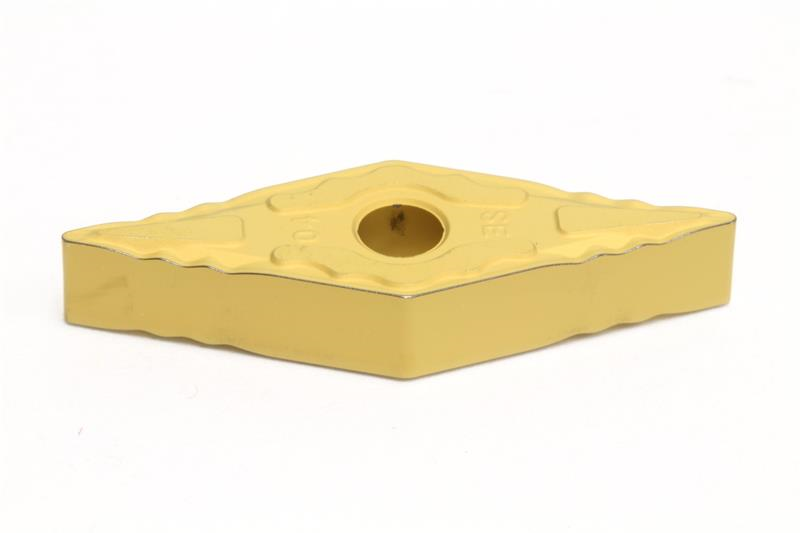

VNMG331 ESE AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331ESE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.1875 Inch
Rake Angle 5 Degree
Relief Angle 0 Degree
Coating/Finish CVD
Included Angle 35
Material Solid Carbide
Chipbreaker Type ESE
Corner Radius 0.0156 Inch
Number of Edges 4
Insert Type Negative
Shape Diamond
Inscribed Circle 0.3750 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Grade AC810P
Insert Size 331
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
