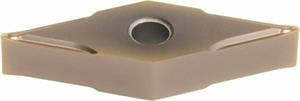

VNMG331 ESU AC520U Grade, Carbide Turning Insert

  • Item Code: VNMG331ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Included Angle 35
Insert Size 331
Mounting Hole Diameter 0.1500 Inch
Material Solid Carbide
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Product Name Turning Insert
Rake Angle 13 Degree
Thickness 0.1875 Inch
Grade AC520U
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Type Negative
Corner Radius 0.0156 Inch
Number of Edges 4
