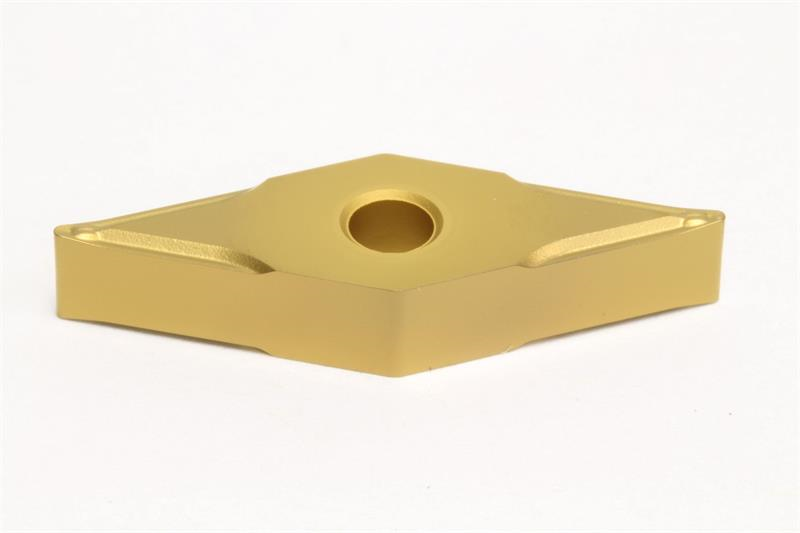

VNMG331 ESU AC810P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG331ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC810P
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Included Angle 35
Product Name Turning Insert
Thickness 0.1875 Inch
Brand Sumitomo
Material Solid Carbide
Corner Radius 0.0156 Inch
Shape Diamond
Chipbreaker Type ESU
Insert Size 331
Insert Style VNMG
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Insert Type Negative
Relief Angle 0 Degree
