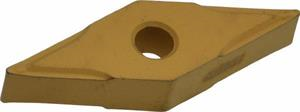

VNMG331 ESU AC820P Grade, Carbide Turning Insert

  • Item Code: VNMG331ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Insert Size 331
Included Angle 35
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Brand Sumitomo
Insert Style VNMG
Rake Angle 13 Degree
Thickness 0.1875 Inch
Grade AC820P
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Corner Radius 0.0156 Inch
Number of Edges 4
Shape Diamond
