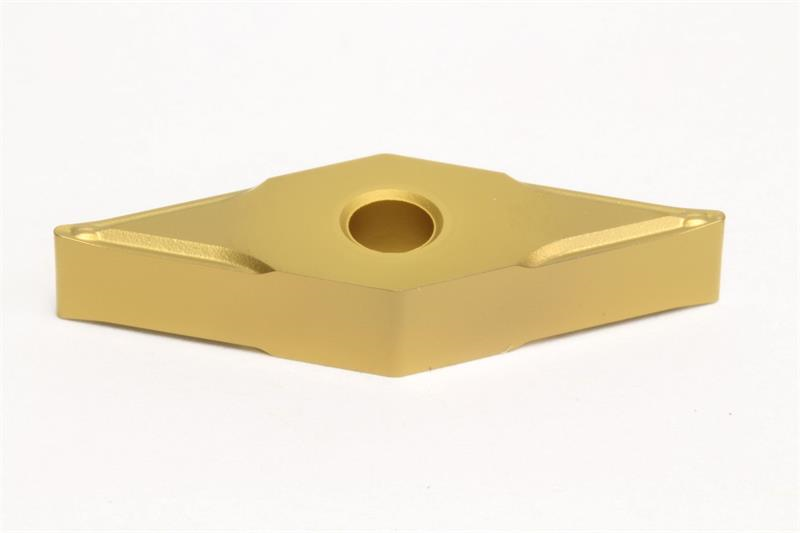

VNMG331 ESU AC830P Grade, Carbide Turning Insert

  • Item Code: VNMG331ESU-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style VNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Rake Angle 13 Degree
Grade AC830P
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish CVD
Relief Angle 0 Degree
Insert Type Negative
Chipbreaker Type ESU
Number of Edges 4
Included Angle 35
Material Solid Carbide
