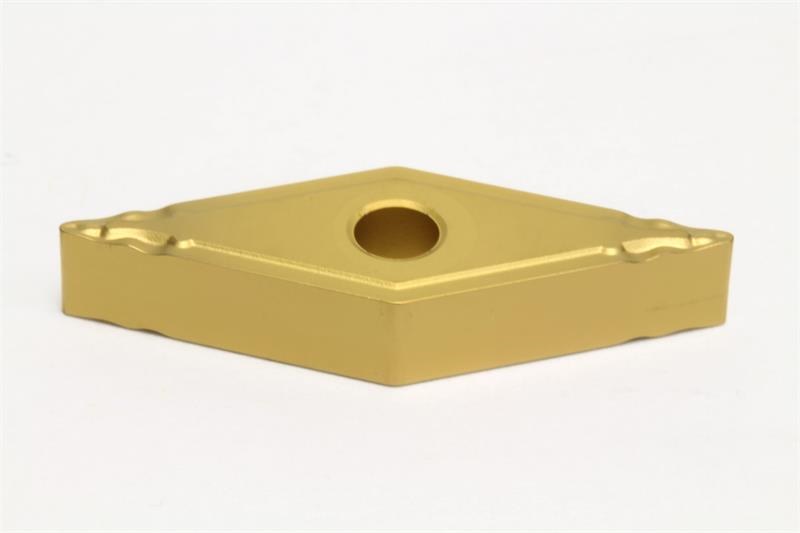

VNMG331 ESX AC700G Grade, TiC Coated, Carbide Turning Insert

  • Item Code: VNMG331ESX AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Grade AC700G
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Coating/Finish Coated
Included Angle 35
Number of Edges 4
Relief Angle 0 Degree
Brand Sumitomo
Insert Size 331
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Chipbreaker Type ESX
Material Solid Carbide
Rake Angle 3 Degree
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
