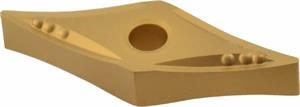

VNMG331 EUP AC830P Grade, Carbide Turning Insert

  • Item Code: VNMG331EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 35
Relief Angle 0 Degree
Coating/Finish CVD
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type EUP
Insert Size 331
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Corner Radius 0.0156 Inch
Number of Edges 4
Rake Angle 10 Degree
Insert Type Negative
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC830P
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
