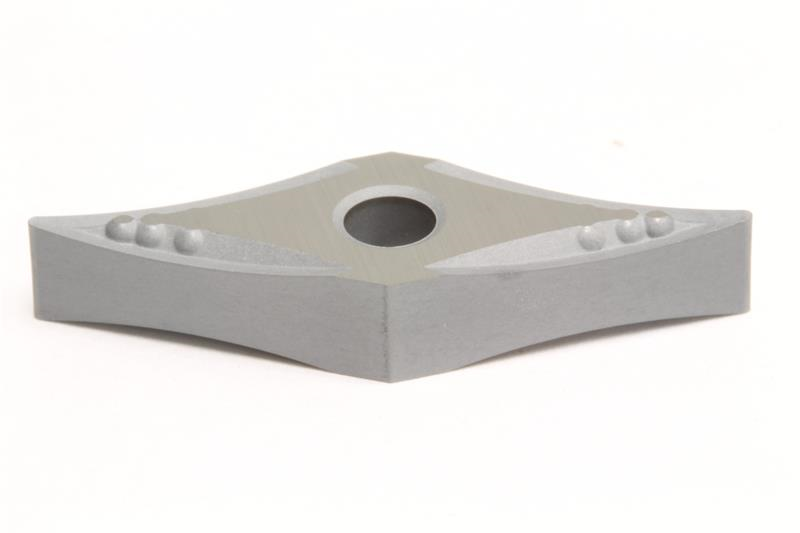

VNMG331 EUP G10E Grade, Carbide Turning Insert

  • Item Code: VNMG331EUP G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish None
Insert Style VNMG
Insert Type Negative
Brand Sumitomo
Chipbreaker Type EUP
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0156 Inch
Insert Size 331
Shape Diamond
Grade G10E
Product Name Turning Insert
Thickness 0.1875 Inch
Included Angle 35
Relief Angle 0 Degree
Material Solid Carbide
Number of Edges 4
Rake Angle 10 Degree
