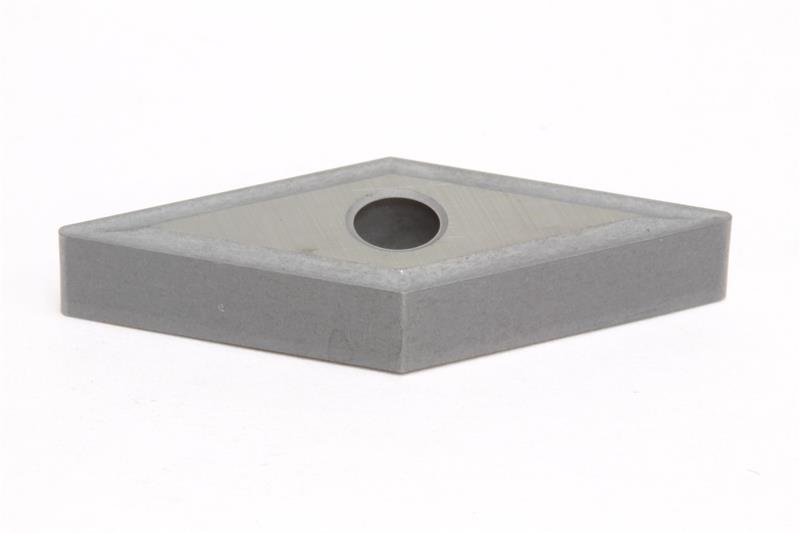

VNMG331 FNZ G10E Grade, Carbide Turning Insert

  • Item Code: VNMG331FNZ G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 35
Material Solid Carbide
Number of Edges 4
Chipbreaker Type ENZ/FNZ
Rake Angle 4 Degree
Relief Angle 0 Degree
Coating/Finish None
Corner Radius 0.0156 Inch
Insert Type Negative
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 331
Insert Style VNMG
Brand Sumitomo
Grade G10E
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
