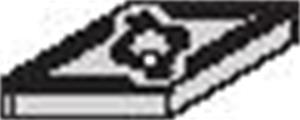

VNMG331ML 9.53 mm Grade WP15CT TiN Coated ISO/ANSI Carbide Insert

  • Item Code: VNMG331ML WP15CT
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Grade WP15CT
Product Name Turning Insert
Style Corner Radius
Shape Diamond
Thickness 3/16 Inch
Clearance Angle 0 Deg
Corner Radius 1/64 Inch
Number of Cutting Edges 4
Coating/Finish TiN
Included Angle 35
Inscribed Circle 3/8 Inch
Brand WIDIA
Material Solid Carbide
