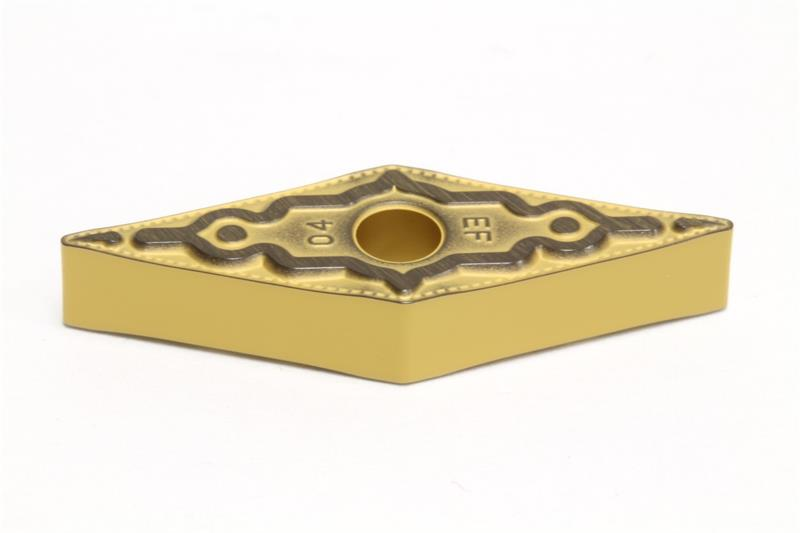

VNMG332 EEF AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332EEF AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Included Angle 35
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Grade AC630M
Insert Size 332
Shape Diamond
Chipbreaker Type EEF
Material Solid Carbide
Brand Sumitomo
Insert Style VNMG
Rake Angle 0 Degree
Inscribed Circle 0.3750 Inch
Relief Angle 0 Degree
