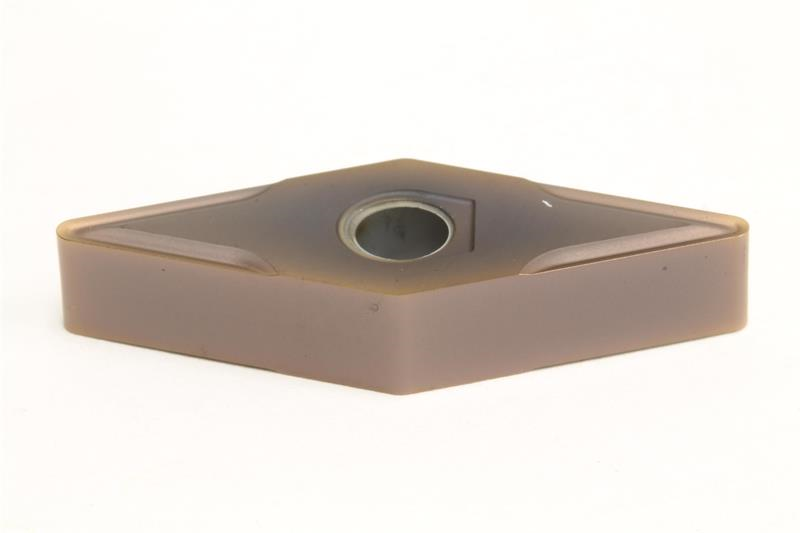

VNMG332 EEX AC520U Grade, TiAIN/AICrN, Carbide Turning Insert

  • Item Code: VNMG332EEX AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Insert Size 332
Relief Angle 0 Degree
Material Solid Carbide
Chipbreaker Type EEX
Number of Edges 4
Insert Type Negative
Shape Diamond
Brand Sumitomo
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC520U
Rake Angle 16 Degree
Included Angle 35
Inscribed Circle 0.3750 Inch
Thickness 0.1875 Inch
