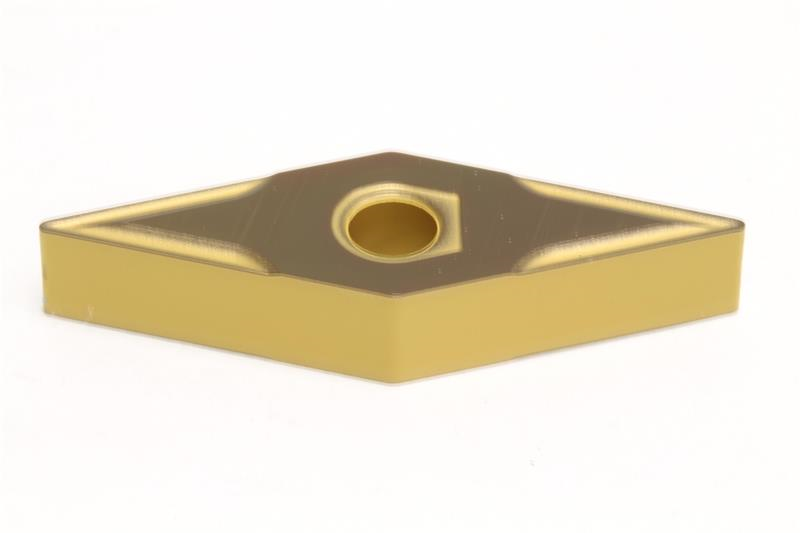

VNMG332 EEX AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332EEX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Rake Angle 16 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Material Solid Carbide
Coating/Finish CVD
Grade AC630M
Included Angle 35
Relief Angle 0 Degree
Chipbreaker Type EEX
Number of Edges 4
