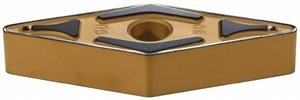

VNMG332 EGU AC700G Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332EGU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Included Angle 35
Mounting Hole Diameter 0.1500 Inch
Grade AC700G
Shape Diamond
Chipbreaker Type EGU
Material Solid Carbide
Corner Radius 0.0313 Inch
Insert Size 332
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Product Name Turning Insert
Rake Angle 7 Degree
Thickness 0.1875 Inch
Coating/Finish Coated
Number of Edges 4
