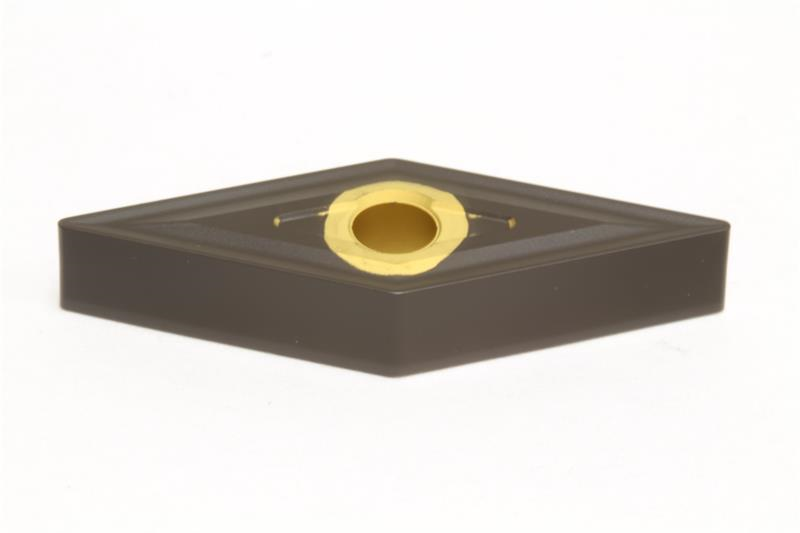

VNMG332 EGZ AC405K Grade, Proprietary Coated, Carbide Turning Insert

  • Item Code: VNMG332EGZ AC405K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Insert Size 332
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Shape Diamond
Coating/Finish CVD
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Grade AC405K
Brand Sumitomo
Insert Style VNMG
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Chipbreaker Type EGZ
Included Angle 35
Insert Type Negative
Relief Angle 0 Degree
