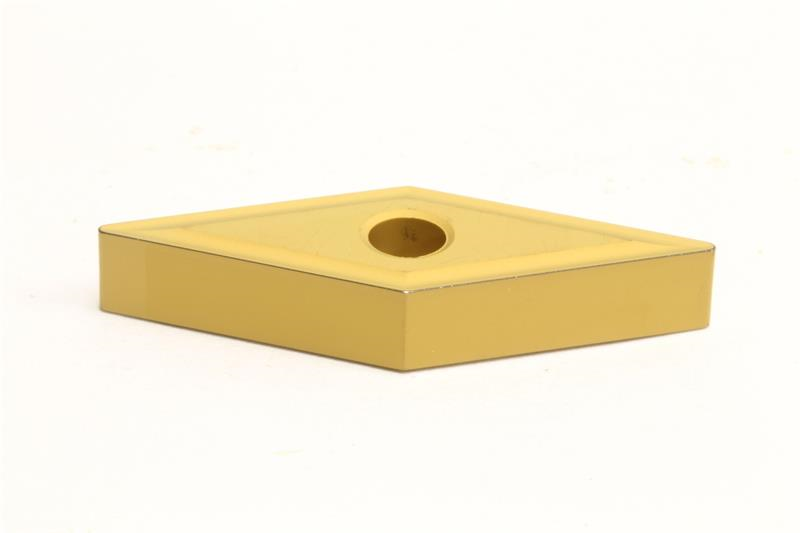

VNMG332 ENZ AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332ENZ AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 332
Rake Angle 4 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Shape Diamond
Insert Type Negative
Relief Angle 0 Degree
Chipbreaker Type ENZ/FNZ
Corner Radius 0.0313 Inch
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Product Name Turning Insert
Coating/Finish CVD
Included Angle 35
Thickness 0.1875 Inch
Material Solid Carbide
