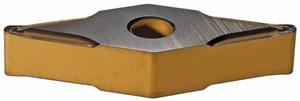

VNMG332 ESU AC630M Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332ESU-AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Brand Sumitomo
Chipbreaker Type ESU
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Rake Angle 13 Degree
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Included Angle 35
Number of Edges 4
Insert Size 332
Material Solid Carbide
Coating/Finish CVD
Grade AC630M
