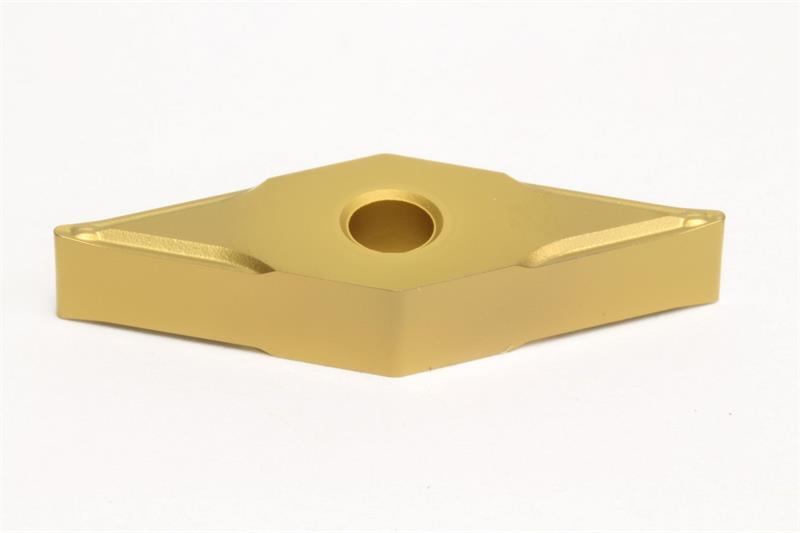

VNMG332 ESU AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332ESU AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Coating/Finish CVD
Material Solid Carbide
Number of Edges 4
Corner Radius 0.0313 Inch
Insert Size 332
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Style VNMG
Mounting Hole Diameter 0.1500 Inch
Product Name Turning Insert
Included Angle 35
Insert Type Negative
Shape Diamond
Grade AC830P
Inscribed Circle 0.3750 Inch
Rake Angle 13 Degree
Thickness 0.1875 Inch
