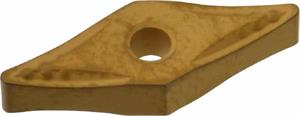

VNMG332 EUX AC820P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG332EUX AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC820P
Mounting Hole Diameter 0.1500 Inch
Number of Edges 4
Insert Type Negative
Material Solid Carbide
Chipbreaker Type EUX
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Relief Angle 0 Degree
Corner Radius 0.0313 Inch
Insert Size 332
Shape Diamond
Brand Sumitomo
Insert Style VNMG
Included Angle 35
Inscribed Circle 0.3750 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
