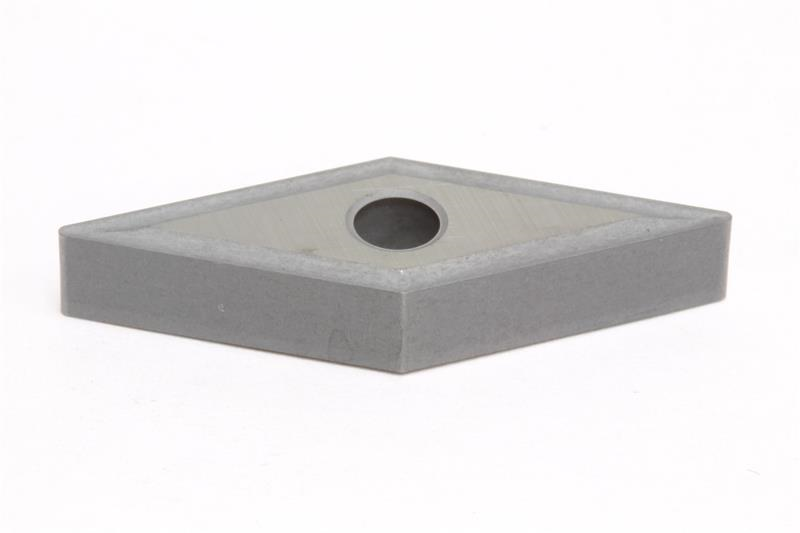

VNMG332 FNZ G10E Grade, Carbide Turning Insert

  • Item Code: VNMG332FNZ G10E
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ENZ/FNZ
Corner Radius 0.0313 Inch
Insert Size 332
Rake Angle 4 Degree
Relief Angle 0 Degree
Mounting Hole Diameter 0.1500 Inch
Included Angle 35
Material Solid Carbide
Brand Sumitomo
Grade G10E
Inscribed Circle 0.3750 Inch
Insert Style VNMG
Product Name Turning Insert
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Coating/Finish None
Shape Diamond
Number of Edges 4
