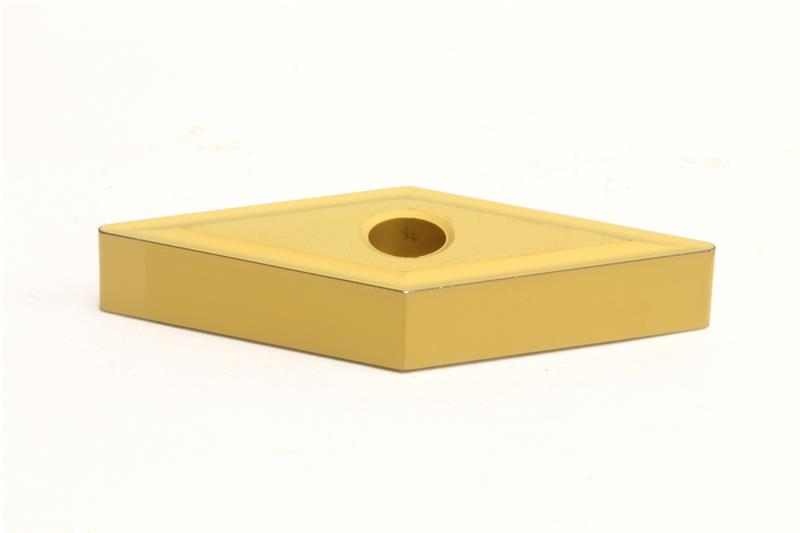

VNMG433 ENZ AC830P Grade, AI2O3 Coated, Carbide Turning Insert

  • Item Code: VNMG433ENZ AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0469 Inch
Included Angle 35
Thickness 0.1875 Inch
Chipbreaker Type ENZ/FNZ
Product Name Turning Insert
Rake Angle 4 Degree
Coating/Finish CVD
Grade AC830P
Number of Edges 4
Insert Size 433
Material Solid Carbide
Inscribed Circle 0.5000 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Style VNMG
Shape Diamond
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
