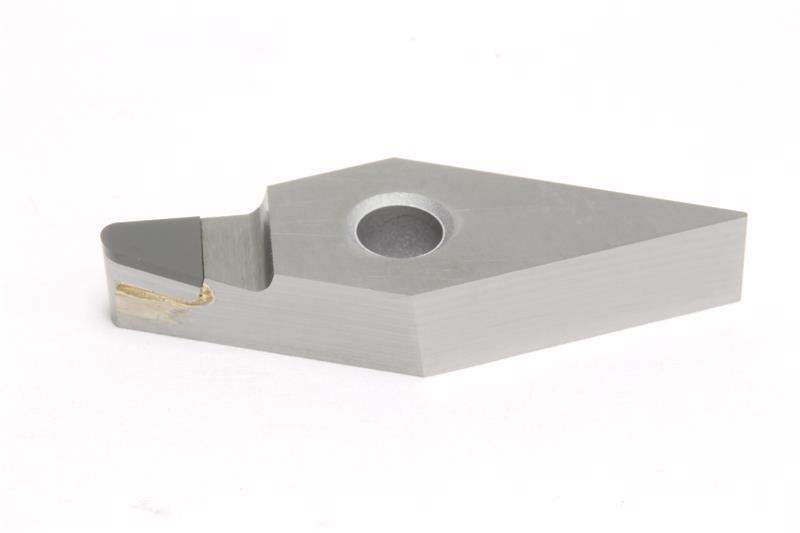

VNMX331 DA150 Grade, Polycrystalline Diamond (PCD) Turning Insert

  • Item Code: VNMX331 DA150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.

Tech Specs

Back To Top
Insert Size 331
Insert Style VNMX
Mounting Hole Diameter 0.1500 Inch
Coating/Finish Compound
Insert Type Negative
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Grade DA150
Number of Edges 4
Rake Angle 10 Degree
Shape Diamond
Chipbreaker Type Standard Tip
Material PCD
Relief Angle 0 Degree
Inscribed Circle 0.3750 Inch
Brand Sumitomo
Included Angle 35
Product Name Turning Insert
