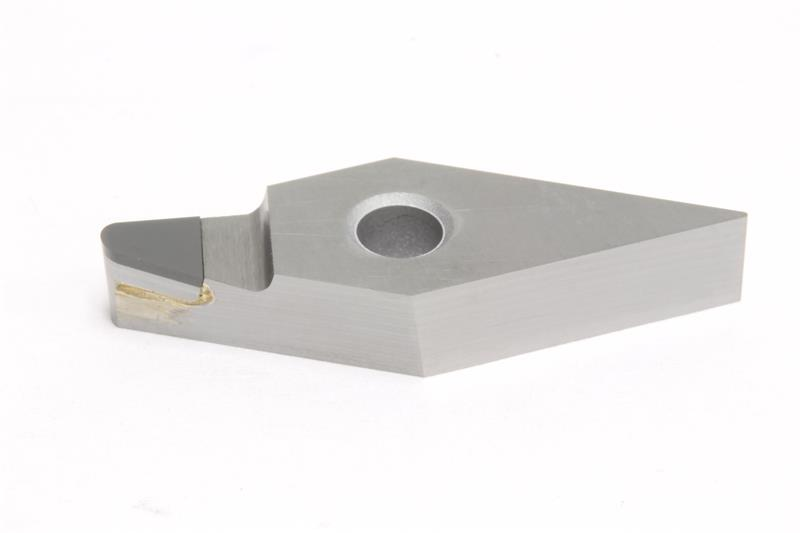

VNMX332 DA150 Grade, Polycrystalline Diamond (PCD) Turning Insert

  • Item Code: VNMX332 DA150
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.

Tech Specs

Back To Top
Grade DA150
Insert Type Negative
Coating/Finish Compound
Included Angle 35
Shape Diamond
Chipbreaker Type Standard Tip
Insert Size 332
Material PCD
Relief Angle 0 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Thickness 0.1875 Inch
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0313 Inch
Number of Edges 4
Rake Angle 10 Degree
Insert Style VNMX
