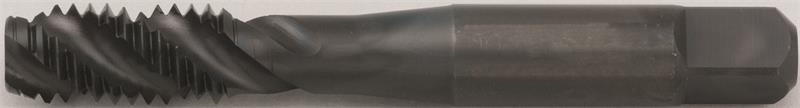

3/8-16 TiCN Coated 3 Spiral Flutes H3 HSS-E Form C Semi-Bottoming Chamfer Tap

  • Item Code: VTSFT-TC5061 WP42EG
  • Brand: WIDIA
  • Unit Size: 1

Description

  • Series VTSFT
  • High Performance Taps
  • Spiral-Flute HSS-E Extension Taps
  • Blind Holes

Features Tech Specs

Features

Back To Top
    • Form C Semi-Bottoming Chamfer
    • Machine Screw and Fractional
    • 6" Length
    • ANSI
    • Tension/Compression Holders



Tech Specs

Back To Top
Overall Length 2.94"
Coolant Through (Yes/No) No
Grade WP42EG
Material HSS
Thread Type NC/UNC/UNJC
Square Size 0.2840 Inch
Thread Limit H3
Coating TiCN
Hand of Tool Right Hand
Threads per Inch 16
Flute Style Helix
Shank Diameter 0.3810 Inch
Thread Length 0.7500 Inch
Diameter 3/8-16
Shank Length 1.3000 Inch
Shank Style Square
Brand WIDIA
Chamfer Semi Bottoming
No. of Flutes 3
