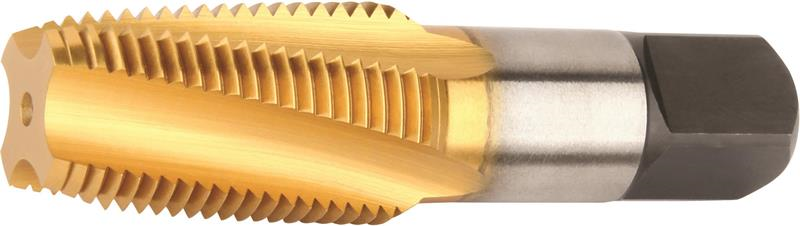

1/8-27 Oxide 4 Spiral Flutes HSS-E NPTF 2 1/2-3 1/2 Pitches Chamfered Pipe Tap
- Item Code: VTSFT8502 WP49EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VTSFT
High Performance Taps
Spiral-Flute HSS-E Extension Taps
Blind Holes
Features
Back To Top- Form C Semi-Bottoming Chamfer
- Machine Screw and Fractional
- 6" Length
- ANSI
- Tension/Compression Holders
Tech Specs
Back To Top| Chamfer | Standard |
|---|---|
| Shank Diameter | 1/32 Inch |
| Coating | Oxide |
| Grade | WP49EG |
| Threads Per Inch | 27 |
| Material | HSS Cobalt |
| Hand of Tool | Right Hand |
| Number of Flutes | 4 |
| Overall Length | 2-1/8 Inch |
| Brand | WIDIA |
| Coolant Through (Yes/No) | No |
| Shank Style | Square |
| Square Size | 0.2320 Inch |
| Thread Length | 0.7500 Inch |
| Unit of Measure | Inch |
| Diameter | 1/8 - 27 |
| Product Name | Tap |
| Thread Type | NPTF |
