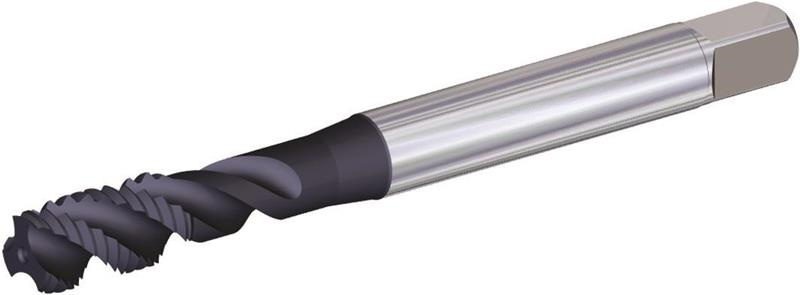

1/2-13 TiCN Coated 3 Spiral Flutes 2B DIN-ANSI HSS-E Form C Semi-Bottoming Chamfer Coolant Through Tap
- Item Code: VTSFT9770 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VTSFT
High Performance Taps
Spiral-Flute HSS-E Extension Taps
Blind Holes
Features
Back To Top- Form C Semi-Bottoming Chamfer
- Machine Screw and Fractional
- 6" Length
- ANSI
- Tension/Compression Holders
Tech Specs
Back To Top| Shank Length | 2.0900 Inch |
|---|---|
| Square Size | 0.2730 Inch |
| Hand of Tool | Right Hand |
| Product Name | Tap |
| Overall Length | 3.9400 Inch |
| Thread Type | NC/UNC |
| Flute Style | Helix |
| Grade | WP42EG |
| Brand | WIDIA |
| Chamfer | Semi Bottoming |
| Coating | TiCN |
| Material | Carbide |
| Thread Class | 2B |
| Thread Length | 0.9100 Inch |
| Threads Per Inch | 13 |
| Unit of Measure | Inch |
| Coolant Through (Yes/No) | Yes |
| Shank Diameter | 0.3670 Inch |
| Diameter | 1/2 - 13 |
| Number of Flutes | 3 |
| Shank Style | Square |
