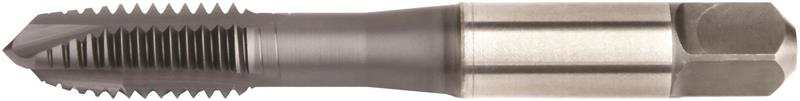

M5 x 0.8 TiN Coated 2 Flutes D4 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5511 WU41EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Overall Length | 60.30 MM |
|---|---|
| Shank Diameter | 4.928 MM |
| Thread Length | 12.70 MM |
| Chamfer | Plug |
| Thread Type | METRIC |
| Product Name | Tap |
| Coolant Through (Yes/No) | No |
| Square Size | 3.81 MM |
| Unit of Measure | Metric |
| Pitch | 0.80 MM |
| Shank Length | 37.10 MM |
| Coating | TiN |
| Diameter | M5 X 0.8 |
| Flute Style | Straight |
| Shank Style | Square |
| Grade | WU41EG |
| Material | HSS Cobalt |
| Brand | WIDIA |
| Hand of Tool | Neutral |
| Number of Flutes | 2 |
| Thread Limit | D4 |
