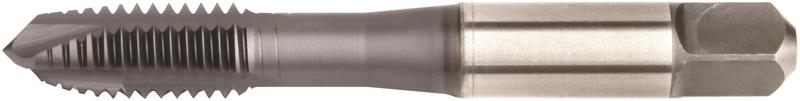

M6 x 1 TiCN Coated 3 Flutes D5 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5513 WP42EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Coating | TiCN |
|---|---|
| Overall Length | 63.50 MM |
| Shank Length | 38.10 MM |
| Coolant Through (Yes/No) | No |
| Diameter | M6 X 1 |
| Thread Limit | D5 |
| Unit of Measure | Metric |
| Square Size | 4.80 MM |
| Brand | WIDIA |
| Material | HSS Cobalt |
| Number of Flutes | 3 |
| Shank Style | Square |
| Grade | WP42EG |
| Thread Type | METRIC |
| Flute Style | Straight |
| Product Name | Tap |
| Shank Diameter | 6.477 MM |
| Chamfer | Plug |
| Pitch | 1.00 MM |
| Hand of Tool | Neutral |
| Thread Length | 16.00 MM |
