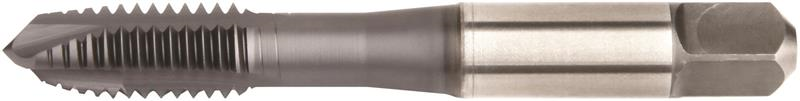

M8 x 1.25 S TiN Coated 3 Flutes D5 HSS-E Form B Plug Chamfer Spiral Point Tap
- Item Code: VTSPO5519 WU41EG
- Brand: WIDIA
- Unit Size: 1
Description
Series VT-SPO
Multipurpose Taps
VariTap™ Spiral-Point HSS-E Taps
Through Holes
Tech Specs
Back To Top| Coolant Through (Yes/No) | No |
|---|---|
| Thread Length | 17.50 MM |
| Unit of Measure | Metric |
| Brand | WIDIA |
| Number of Flutes | 3 |
| Pitch | 1.25 MM |
| Shank Style | Square |
| Chamfer | Plug |
| Overall Length | 68.90 MM |
| Shank Length | 40.30 MM |
| Thread Type | METRIC |
| Grade | WU41EG |
| Material | HSS Cobalt |
| Shank Diameter | 8.077 MM |
| Thread Limit | D5 |
| Coating | TiN |
| Flute Style | Straight |
| Product Name | Tap |
| Diameter | M8 X 1.25 |
| Hand of Tool | Neutral |
| Square Size | 5.99 MM |
